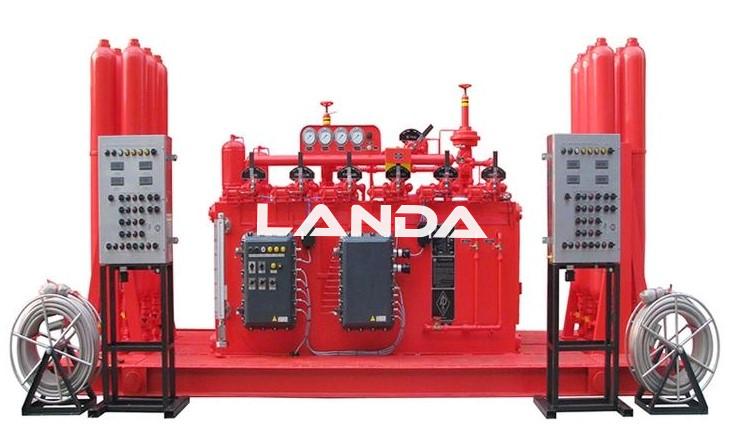

BOP Control Unit
Wellhead & Well Control Equipment
control, wellhead, oil, gas
BOP Control System, also called as BOP Control Unit, is an important unit for controlling the wellhead blowout preventer, hydraulic valve and the killing valve during drilling and workover operation. BOP control system can be in pneumatic, hydraulic, or electric control in different working conditions. BOP control unit supplied by Finemade is made according to API Spec 16D.
Features
The Remote Control Panel is equipped with both electric and pneumatic power. Backup inlet for pressure oil ensures the system working regularly despite some unexpected situations.
The power system is equipped with automatic control system and double protective device against overload pressure for hydraulic system. The operation is easy, safe and reliable.
With four sets of accumulators, the system can work regularly with the rest 75% volume in case one of them is out of order. A relief valve is split-type installed to increase the strength of the accumulator, which makes it easy for disassembly and maintenance.
With clear identification, and giving signals for current working condition, misoperation could be avoided, which makes driller control panel easy to operate.
The product design and manufacture are strictly complied with API Spec 16D (Drilling control equipment and systems) standard.
Technical Data
| Type | Number of controlled objects | Accumulators sets | Volume of Oil reservoir (L) | Motor Power (Kw) | Flow volume of pump | |||||||
| Annular | Ram | Choke | Spare | Nominal Volume(L) | Effective Volume(L) | Alignment | Electric pump (L/min) | Pneumatic pump (ml/stroke) | Manual pump (ml/stroke) | |||
| FKQ1440-14 | 1 | 4 | 7 | 2 | 60×24 | 720 | Rear | 2300 | 18.5×2 | 46×2 | 60×4 | |
| FKQ1280-8 | 1 | 3 | 2 | 1 | 80×16 | 640 | Side | 1650 | 18.5×2 | 46×2 | 60×2 | |
| FKQ960-8 | 1 | 3 | 3 | 1 | 60×16 | 480 | Side | 1650 | 18.5×2 | 46×2 | 60×2 | |
| FKQ840-8 | 1 | 3 | 3 | 1 | 60×14 | 420 | Side | 1650 | 18.5 | 46 | 60×2 | |
| FKQ1280-7B | 1 | 3 | 2 | 1 | 80×16 | 640 | Side | 1600 | 18.5×2 | 46×2 | 60×2 | |
| FKQ800-7 | 1 | 3 | 2 | 1 | 40×20 | 400 | Side | 1600 | 18.5 | 46 | 60×2 | |
| FKQ800-7B | 1 | 3 | 2 | 1 | 80×10 | 400 | Side | 1600 | 18.5 | 46 | 60×2 | |
| FKQ800-7C | 1 | 3 | 2 | 1 | 40×20 | 400 | Side | 1600 | 18.5 | 46 | 60×2 | |
| FKQ800-7D | 1 | 3 | 2 | 1 | 40×20 | 400 | Side | 1600 | 18.5 | 46 | 60×2 | |
| FKQ720-6 | 1 | 3 | 2 | 60×12 | 360 | Side | 1290 | 18.5 | 46 | 60×2 | ||
| FKQ720-6C | 1 | 3 | 2 | 60×12 | 360 | Rear | 1290 | 18.5 | 46 | 60×2 | ||
| FKQ720-6D | 1 | 3 | 2 | 60×12 | 360 | Side | 1290 | 18.5 | 46 | 60×2 | ||
| FKQ640-6 | 1 | 3 | 2 | 40×16 | 320 | Side | 1290 | 18.5 | 46 | 60×2 | ||
| FKQ640-6B | 1 | 3 | 2 | 80×8 | 320 | Side | 1290 | 18.5 | 46 | 60×2 | ||
| FKQ640-6C | 1 | 3 | 2 | 40×16 | 320 | Rear | 1290 | 18.5 | 46 | 60×2 | ||
| FKQ640-6D | 1 | 3 | 2 | 40×16 | 320 | Side | 1290 | 18.5 | 46 | 60×2 | ||
| FKQ480-5 | 1 | 3 | 1 | 40×12 | 200 | Side | 1100 | 18.5 | 46 | 60×2 | ||
| FKQ480-5B | 1 | 3 | 1 | 80×6 | 200 | Side | 1100 | 18.5 | 46 | 60×2 | ||
| FKQ480-5C | 1 | 3 | 1 | 40×12 | 200 | Rear | 1100 | 18.5 | 46 | 60×2 | ||
| FKQ320-4 | 1 | 2 | 1 | 40×8 | 160 | Side | 790 | 11 | 35 | 60×1 | ||
| FKQ320-4C | 1 | 2 | 1 | 40×8 | 160 | Rear | 790 | 11 | 35 | 60×1 | ||
| FKQ240-3C | 1 | 1 | 1 | 40×6 | 120 | Rear | 550 | 11 | 35 | 60×1 | ||
| FK240-4 | 1 | 2 | 1 | 40×6 | 120 | Rear | 550 | 11 | 20 | 14/28 | ||
| FK240-4E | 1 | 2 | 1 | 120 | Rear | 550 | 11 | 20 | 14/28 | |||
| FK240-3 | 1 | 1 | 1 | 40×6 | 120 | Rear | 550 | 11 | 20 | 14/28 | ||
| FK125-3 | 1 | 1 | 1 | 25×5 | 62.5 | Rear | 440 | 7.5 | 20 | 14/28 | ||
