Choke and Kill Hose
Wellhead & Well Control Equipment
well control, wellhead
Product Introduction

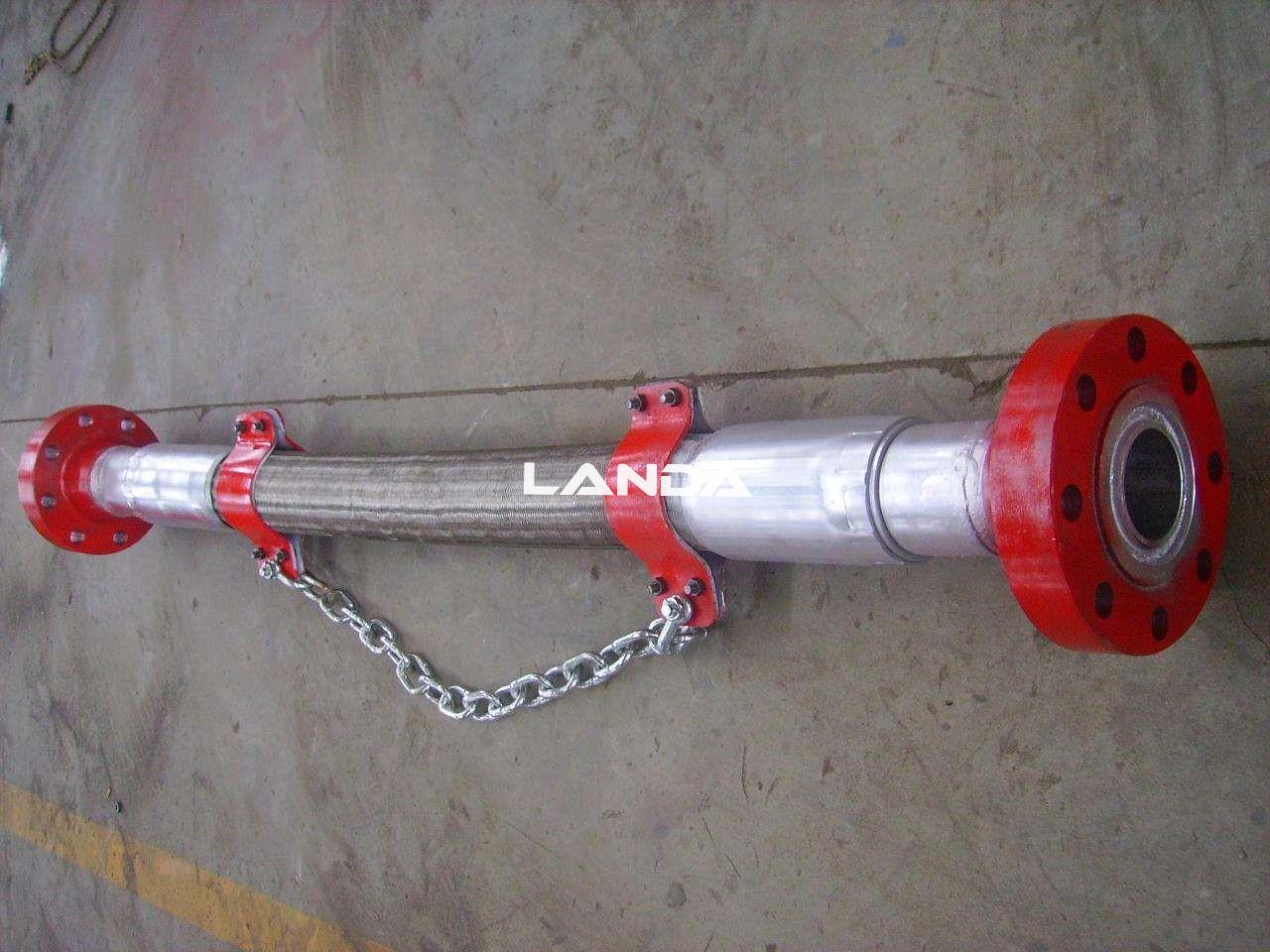

The chock and kill hose can be used for flexible connection in the choke manifold and kill manifold system.
Features
Working temperature: -20℃～+121℃ (Grade B+U).
Structure:
Tube: Nitrile rubber, resistant to oil, abrasion, acid & alkali.
Reinforcement: 2-8 layers of single high strength steel wire spiral.
Cover: Neoprene, resistant to oil, abrasion and low temperature, weather proof and anti-aging.
Armor: Stainless steel armor.
Connection: Welded or integral union, flange or clamp connection form. Special type can be available upon customers' request.
Optional: Accessories such as safety chain or clamp and hose lift eye & collar clamp are available.
Standard: API Spec 16C
Technical Data
| I.D. in. (mm) | O.D. mm | W.P. psi | T.P. psi | Min bending radius m | Referance weight kg/m |
| 2 (50.8) | 99 | 34.5 | 69 | 1.2 | 15 |
| 2½ (63.5) | 115 | 34.5 | 69 | 1.2 | 19.6 |
| 3 (76.2) | 133 | 34.5 | 69 | 1.6 | 24.9 |
| 3½ (88.9) | 146 | 34.5 | 69 | 1.7 | 27.8 |
| 4 (101.6) | 169 | 34.5 | 69 | 1.7 | 41.6 |
| 2 (50.8) | 108 | 34.5 | 69 | 1.4 | 19.2 |
| 2½ (63.5) | 130 | 34.5 | 69 | 1.4 | 30.2 |
| 3 (76.2) | 146 | 34.5 | 69 | 1.7 | 35 |
| 4 (101.6) | 183 | 34.5 | 69 | 1.8 | 55.3 |
| 2 (50.8) | 118 | 34.5 | 69 | 1.6 | 26.2 |
| 2½ (63.5) | 146 | 34.5 | 69 | 1.6 | 41.8 |
| 3 (76.2) | 160 | 34.5 | 69 | 1.6 | 50.6 |
